The objective of Functional Safety is to eliminate or minimize unacceptable risks to People, Equipment and the Environment. To achieve this objective, different types of measures can be combined and different layers of protection implemented, such as the Safety Instrumented System (SIS).
Standard IEC 61508 is used by manufacturers to certify their products (sensors, PLCs and final elements) and it is also the standard that serves as a basis for developing other specific standards for each sector, such as IEC 61511 for the process industry, IEC 62061 for machinery, EN 50126/128/129 for the railway sector and others.
SIS Life Cycle: Risk Analysis, Design & Implementation, O & M
RISK ANALYSIS
DESIGN & IMPLEMENTATION
OPERATION & MAINTENANCE
During the O&M phase is crucial to maintain the integrity of the SIFs over time.

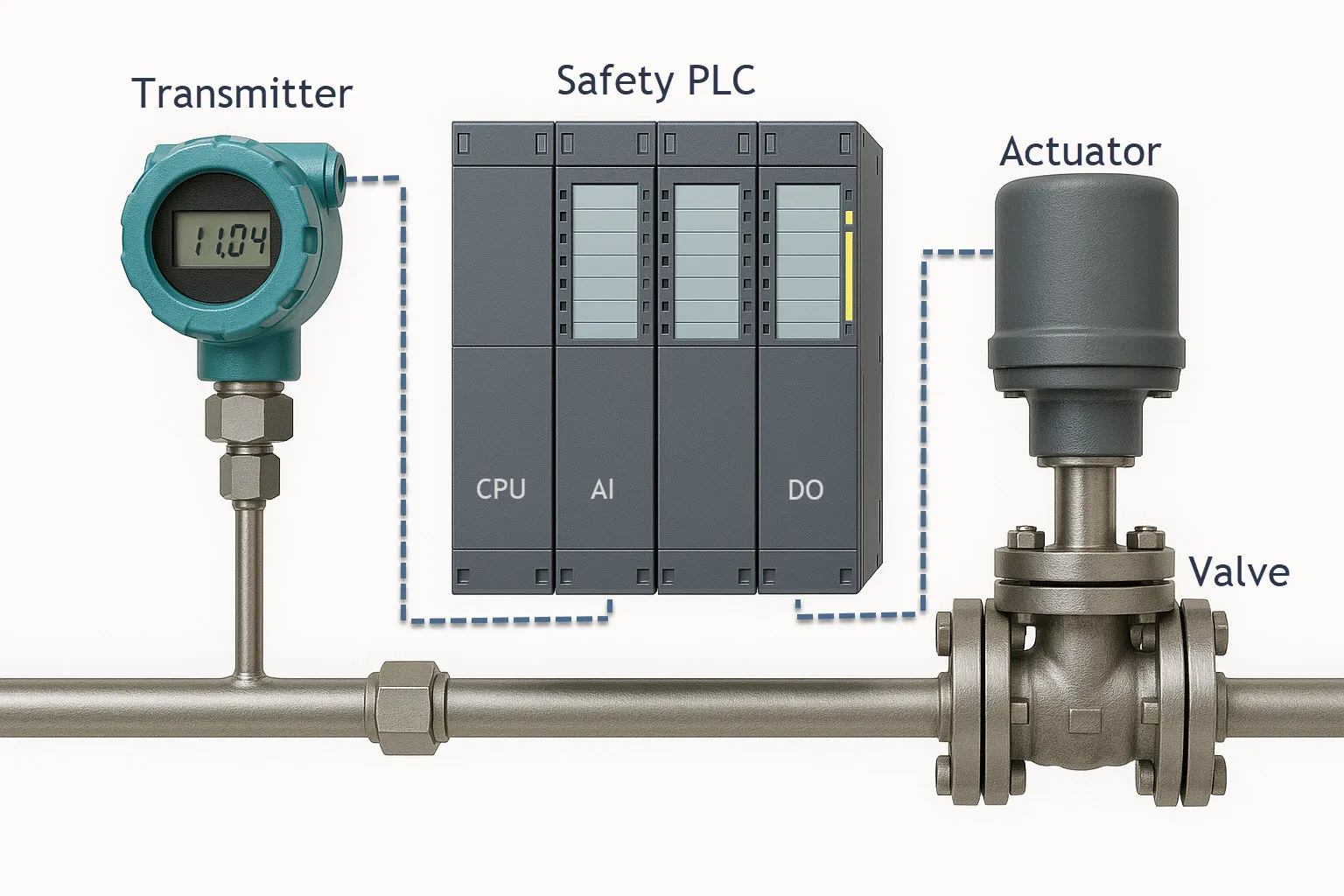

Safety Instrumented Function (SIF)
The Safety Instrumented Function is composed of three subsystems: SENSOR, LOGIC SOLVER and ACTUATOR. Its objective is the safety of People, Equipment and the Environment. During the Process Hazard Analysis (PHA) the SIF is defined and the required SIL is determined, as well as other values such as the RRF (Risk Reduction Factor), the MTTFS (average time in years between two spurious process trips) and other parameters used in the calculation of the Probability of Failure (PFDavg / PFH).
Sensor Subsystem
It covers the connection to the process (seal, RTD, etc.), the instrument (transmitter or switch), wiring to the PLC cabinet, and input interface (isolator, barrier, etc.). The best practice is to use 4-20 mA transmitters to diagnose dangerous faults.Sensor Subsystem
The most commonly used architectures for this subsystem are 1oo1, 1oo2, 2oo2, and 2oo3. These configurations help ensure reliability and availability depending on the required safety integrity level.
Logic Solver Subsystem
It is recommended to use a manufacturer-certified Safety PLC that meets the highest SIL requirement among all SIFs. These PLCs have a high self-diagnostic capability (>95%), significantly reducing the need for frequent “Proof Tests.”Logic Solver Subsystem
The application program is the critical part of the Logic Solver and must be thoroughly tested. The most common architectures include 1oo1D, 1oo2D, 2oo4D, and 2oo3D, with the SIF logic residing in the PLC software.
Actuator Subsystem
It covers the output interface (relay, etc.), wiring to the field, and final element. This includes solenoid valve, actuator (electrical, pneumatic, etc.), valve (ball, butterfly, etc.), or other components such as horns, lamps, contactors, etc.Actuator Subsystem
This subsystem is often the weak link of the Safety Function since mechanical elements, particularly valves, are in direct contact with the process. The most used architectures for this part are 1oo1, 1oo2, and 2oo2.
